Corrosion resistance Carbon Steel EPDM Single sphere Non Metal Expansion Joint “Have an independent laboratory”
Shanghai Songjiang Group Introduction to everyone: Corrosion resistance Carbon Steel EPDM Single sphere Non Metal Expansion Joint “Have an independent laboratory”. EPDM Single sphere Non Metal Expansion Joint with high-pressure resistance, good elasticity, large displacement, balancing pipe deviation, absorbing vibration, reducing noise, and easy installation.Welcome to Call us to get the newest Infomation.

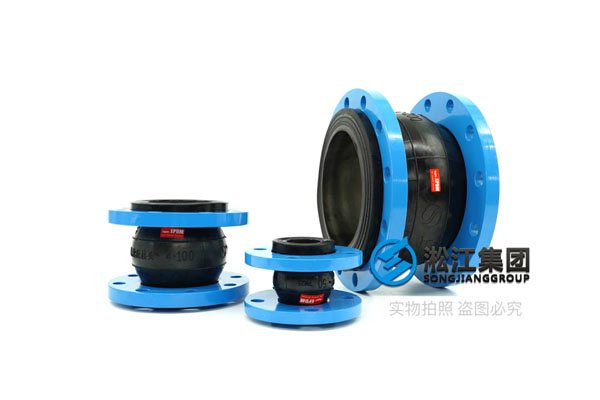

Name: EPDM Single sphere Non Metal Expansion Joint
Model: KXT-EPDM

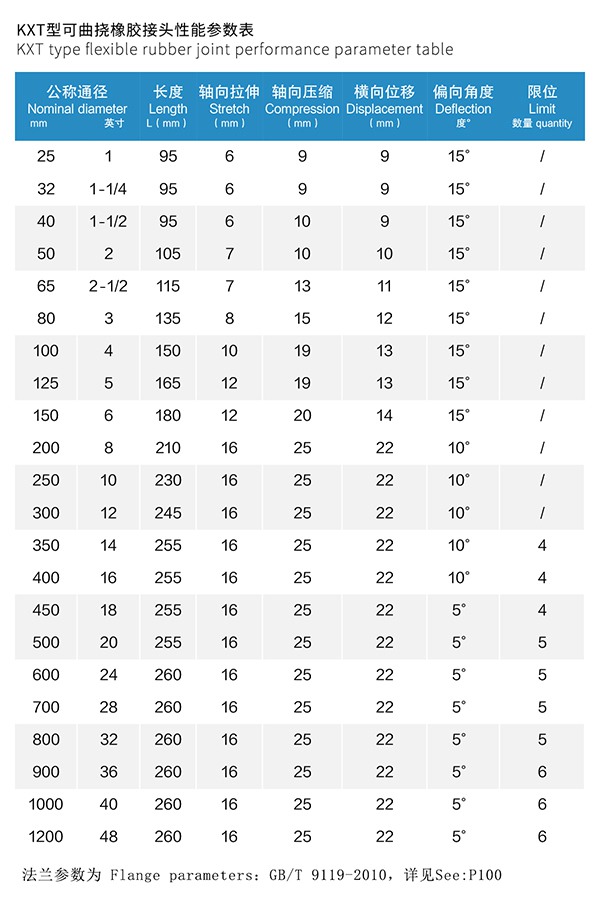

Caliber: DN32
Pressure: 1.6Mpa
Length: 95mm
Axial compression: 9mm
Axial tension: 6mm
Lateral displacement: 9mm
Deviation angle: 15 degrees.

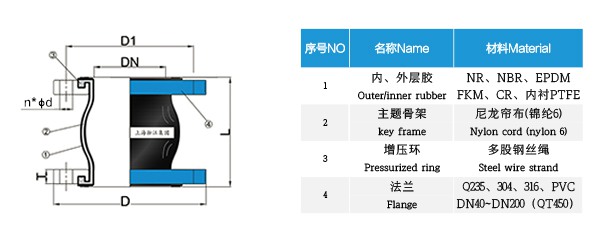

Rubber material: EPDM rubber (Mitsui 4045)
Flange material: carbon steel / ductile QT450 / stainless steel.
Flange standard: GB/T 9119-2000 (in addition to this flange standard, our factory can also support more flange standards, if you need to know other flange standards, please click: Single sphere Non Metal Expansion Joint flange standard)
Advantages: shock absorption, noise reduction, protection of hydraulic equipment for long-term use, reduce maintenance costs.
Warranty period: 12 months.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Assurance Certificate, Inspection Report, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.
Medium use of Single sphere Non Metal Expansion Joints From Leading Brand Single sphere Non Metal Expansion Joint Manufacturer
EPDM: <120°, boiling water, weak acid, strong alkali, seawater, food, beverage, natural gas, power plant lime slurry, power plant desulfurization, limestone, solar hot water, ground source heat pump, lithium electric acid and alkali pipeline, automobile spraying, automobile electrophoresis, wastewater sewage, garbage leachate.
