DN100 Viton/FKM Material Single Sphere Non Metal Expansion Joint Application For Water supply system equipment
Shanghai Songjiang Group Introduction to everyone: DN100 Viton/FKM Material Single Sphere Non Metal Expansion Joint Application For Water supply system equipment. The Viton/FKM Material Single Sphere Non Metal Expansion Joint acid and alkali resistance is better than EPDM rubber, but also can with stand high temperature below 120 degrees, is rubber acid and alkali resistance and high temperature resistance is very good material, known as the king of rubber.

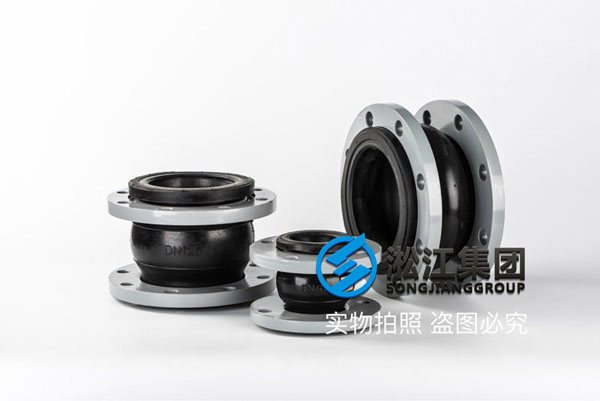

Name: Viton Material Single Sphere Non Metal Expansion Joint

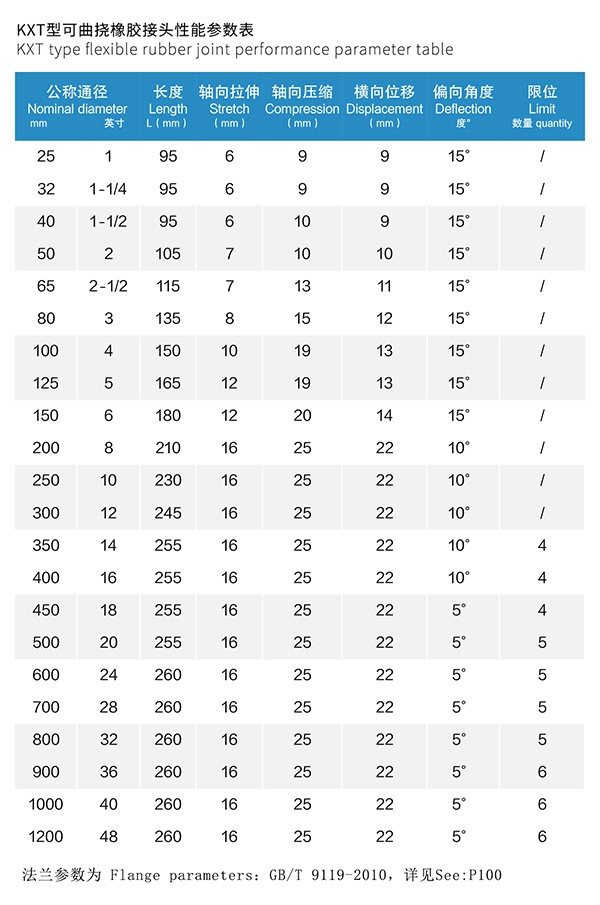

Model: DN100
Installation length: 150mm
Axial compression: 19mm
Axial tension: 10mm
Lateral displacement: 13mm
Deflection angle: 15 degrees.
Standard: GB/T 9119-2000
Pressure: PN16

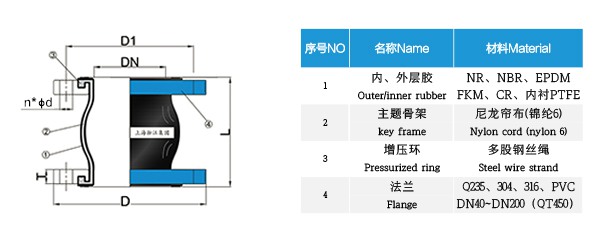

Flange material: QT450/ carbon steel/stainless steel 304/316
Flange standard: GB/T 9119-2000/Ansi B16.5 150#/DIN1092-1/JIS5K
Warranty period: 1yeas
Rubber material: Viton(FKM)
Advantages: shock absorption, noise reduction, protection of pipeline equipment for long-term use, and reduction of maintenance costs.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report, etc.
Production Process of Rubber Joints in Songjiang Group: Raw Material Testing – Automatic Blending of Small Material – Automatic Blending of Large Material – Automatic Mixing – Automatic Barrel Forming – Automatic Forming – Automatic Vulcanization – Quality Testing – Laboratory Testing – Delivery to Customers
Note: choose different rubber raw materials, have different functions.
Medium use of Viton Material Single Sphere Non Metal Expansion Joint
Viton: FKM ≤120 degrees, high temperature, oil resistance, strong acid.
