DN1000 KDT Type Non Metal Single Sphere Expansion Joint Application For No tower frequency conversion water supply
Shanghai Songjiang Group Introduction to everyone: DN1000 KDT Non Metal Single Sphere Expansion Joint Application For No tower frequency conversion water supply, KDT Type Non Metal Single Sphere Expansion Joint are specifically adapted to current market requirements through ongoing further development operations and the development of new components.

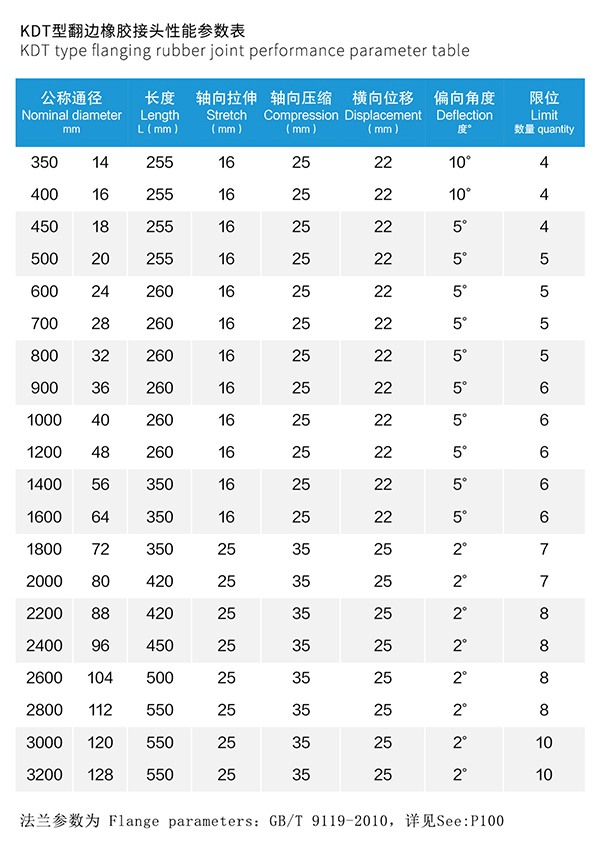

Name: DN1000 KDT Non Metal Expansion Joint
Model: KDT-DN1000
Pressure: 6PN/10PN/16PN
Length:260MM
Axial compression: 25mm
Axial tension: 16mm
Lateral displacement: 22mm
Deviation angle: 5 degrees.
Rubber material: NR/NBR/EPDM/Neoprene/Viton
Flange material: QT450/ carbon steel/stainless steel 304/316
Flange standard: GB/T 9119-2000/Ansi B16.5 150#/DIN1092-1/JIS5K
Warranty period: 1 year/3 years/5 years
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Single sphere Non Metal Expansion Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.
Medium use of KDT Non Metal Expansion Joint From Leading Brand Non Metal Expansion Joint Manufacturer
Natural rubber: < 80°, ordinary water, domestic sewage, air conditioning circulating water, river water, cooling water, fire water, drinking water, pulp;
Noted usually overseas clients will require Neoprene Non Metal Expansion Joint to the pass-through same medium, Because Neoprene is an overseas common use material, and Chinese manufacturer need an import to get Neoprene raw material. so it is expensive about 30% more than a natural rubber-made rubber expansion joint. About 60-70% of Chinese manufacturers will sell natural Non Metal Expansion Joint as Neoprene Non Metal Expansion Joint when they know the pass-through medium is water so their price is not high than the market price. We are honest with all clients, you get the same product we promised. So best you get to know is if your client will accept the use of natural rubber if the drawing shows the material is Neoprene.
EPDM: <120°, boiling water, weak acid, strong alkali, seawater, food, beverage, natural gas, power plant lime slurry, power plant desulfurization, limestone, solar hot water, ground source heat pump, lithium electric acid, and alkali pipeline, automobile spraying, automobile electrophoresis, wastewater sewage, garbage leachate.
NBR:<115° hydraulic oil, emulsion, lubricating oil, thin oil, use for oil exploitation;
Nbr-special: <115° gasoline, diesel oil, aviation kerosene;
Lining PTFE: temperature <80°, strong acid, and alkali, aviation kerosene, petroleum, diesel, gasoline, (non-negative pressure vacuum)
Lining metal or vacuum support ring: if the pipeline has strong vacuum pressure, Lining metal or vacuum support ring Material carbon steel, stainless steel 304/316, according to the medium pass. common medium use carbon steel.
APPLICATION AREAS of KDT Non Metal Expansion Joint From Leading Brand Non Metal Expansion Joint Manufacturer
• firefighting pipe
• Heating and cooling devices
• Heating and cooling devices
• Materials handling technologies
• Water pipes
• Desalination plants
• Compressors
• Blowers and fans
• Cement industry
• Chemical industry
• Glass industry
• Wood-processing industry
• Pulp and paper industry
• Oil and Gas
• Railed vehicles
• Refineries
• Shipbuilding
• Steel mills
• Sugar industry
