DN125 ANSI/ASME B16.5 150# Single Sphere Non Metal Expansion Joint Application For pressurization and steady flow water supply equipment
Shanghai Songjiang Group Introduction to everyone: DN125 ANSI/ASME B16.5 150# Single Sphere Non Metal Expansion Joint Application For pressurization and steady flow water supply equipment. ANSI/ASME B16.5 150# Non Metal Expansion Joint for Industrial applications such as machine construction, motor production, and industrial equipment manufacturer

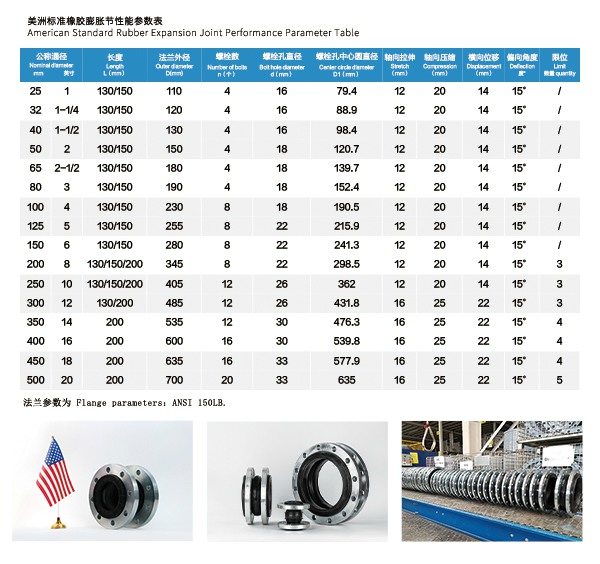

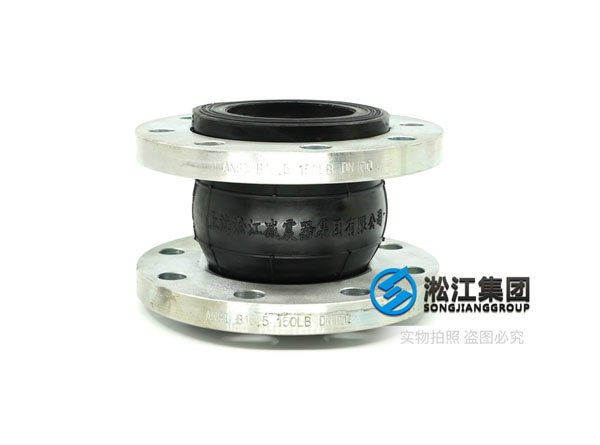

Name: DN125 ANSI/ASME B16.5 150# Single Sphere Non Metal Expansion Joint
Model: ANSI/ASME DN125
Pressure: 0.6Bar/1.0Bar/1.6Bar/2.5Bar
Length: 130/150MM
Axial compression: 20mm
Axial tension: 12mm
Lateral displacement: 14mm
Deviation angle: 15degrees.

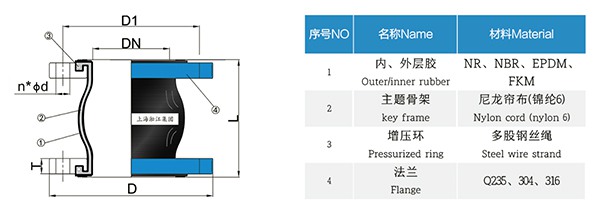

Rubber material: NR/NBR/EPDM/Neoprene/Viton
Flange material: QT450/ carbon steel/stainless steel 304/316
Flange standard: GB/T 9119-2000/Ansi B16.5 150#/DIN1092-1/JIS5K
Warranty period: 1yeas/3years/5years
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Single sphere Non Metal Expansion Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.
Medium use of Single Sphere Non Metal Expansion Joints
Natual rubber: < 80°, ordinary water, domestic sewage, air conditioning circulating water, river water, cooling water, fire water, drinking water, pulp;
Noted usually overseas clients will require Neoprene Single Sphere Non Metal Expansion Joint to the pass-through same medium, Because Neoprene is an overseas common use material, and Chinese manufacturer need an import to get Neoprene raw material. so it is expensive about 30% more than a natural rubber-made rubber expansion joint. About 60-70% of Chinese manufacturers will sell natural Single Sphere Non Metal Expansion Joint as Neoprene Single Sphere Non Metal Expansion Joint when they know the pass-through medium is water so their price is not high then the market price. We are honest with all clients, you get the same product we promised. So best you get to know is if your client will accept the use of natural rubber if the drawing shows the material is Neoprene.
EPDM: <120°, boiling water, weak acid, strong alkali, seawater, food, beverage, natural gas, power plant lime slurry, power plant desulfurization, limestone, solar hot water, ground source heat pump, lithium electric acid and alkali pipeline, automobile spraying, automobile electrophoresis, wastewater sewage, garbage leachate.
NBR:<115° hydraulic oil, emulsion, lubricating oil, thin oil, use for oil exploitation;
Nbr-special: <115° gasoline, diesel oil, aviation kerosene;
Lining PTFE: temperature <80°, strong acid, and alkali, aviation kerosene, petroleum, diesel, gasoline, (non-negative pressure vacuum)
Lining metal or vacuum support ring: if the pipeline has strong vacuum pressure, Lining metal or vacuum support ring Material carbon steel, stainless steel 304/316, according to the medium pass. common medium use carbon steel.
