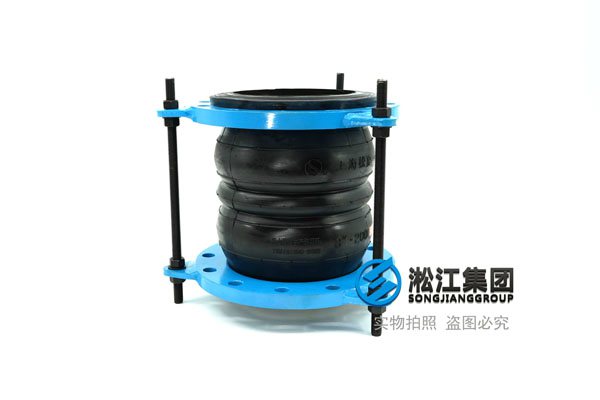

DN200 Tie rod control Carbon Steel Flange Double Sphere Non Metal Expansion Joint Application For High-rise constant pressure water supply equipment
Shanghai Songjiang Group Introduction to everyone: DN200 Tie rod control Carbon Steel Flange Double Sphere Non Metal Expansion Joint， Tie rod control Double Sphere Non Metal Expansion Joint for many world first-line brands of Pump, this product has good vibration reduction Noise reduction effect, simple and convenient installation, maintenance-free, and the level can be adjusted.
Name: KST-F DN200 Tie rod control Double Sphere Non Metal Expansion Joint
Model: KST-F DN200
Pressure: 6PN/10PN/16PN
Length: 320MM
Axial compression: 50mm
Axial tension: 30mm
Lateral displacement: 45mm
Deviation angle: 40degrees.
Rubber material: NR/NBR/EPDM/Neoprene/Viton
Flange material: QT450/ carbon steel/stainless steel 304/316
Flange standard: GB/T 9119-2000/Ansi B16.5 150#/DIN1092-1/JIS5K
Warranty period: 1 year/3years/5 years
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Single sphere Non Metal Expansion Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.
Medium use of Tie rod control Double Sphere Non Metal Expansion Joint
EPDM: <120°, boiling water, weak acid, strong alkali, seawater, food, beverage, natural gas, power plant lime slurry, power plant desulfurization, limestone, solar hot water, ground source heat pump, lithium electric acid, and alkali pipeline, automobile spraying, automobile electrophoresis, wastewater sewage, garbage leachate.
Lining PTFE: temperature <80°, strong acid, and alkali, aviation kerosene, petroleum, diesel, gasoline, (non-negative pressure vacuum)
Lining metal or vacuum support ring: if the pipeline has strong vacuum pressure, Lining metal or vacuum support ring Material carbon steel, stainless steel 304/316, according to the medium pass. common medium use carbon steel.
