DN250 OEM Non Metal Expansion Joint Application For Gas top pressure water supply equipment
Shanghai Songjiang Group Introduction to everyone: DN250 OEM Non Metal Expansion Joint Application For Gas top pressure water supply equipment. Angular movement of the OEM Non Metal Expansion Joint is possible. The angular joints regulate a defined angular movement, absorb axial reaction force and relieve the pressure on the pipe’s fixed points.

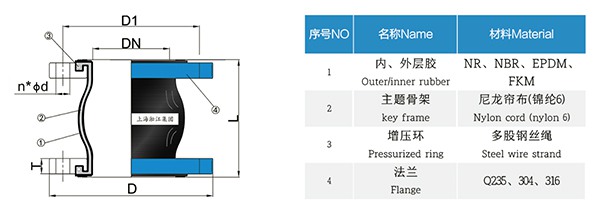

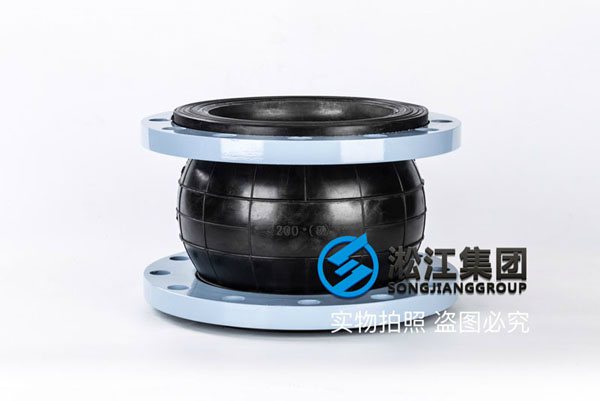

Name: DN250 OEM Non Metal Expansion Joint
Model: KXT-DN250
Pressure: 6PN/10PN/16PN/25PN
Length: 230MM
Axial compression: 25mm
Axial tension: 16mm
Lateral displacement: 22mm
Deviation angle: 10 degrees.
Rubber material: NR/NBR/EPDM/Neoprene/Viton
Flange material: QT450/ carbon steel/stainless steel 304/316
Flange standard: GB/T 9119-2000/Ansi B16.5 150#/DIN1092-1/JIS5K
Warranty period: 1 year/3years/5 years
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Single sphere Non Metal Expansion Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report
APPLICATION AREAS of OEM Non Metal Expansion Joint
• firefighting pipe
• Heating and cooling devices
• Heating and cooling devices
• Materials handling technologies
• Water pipes
• Desalination plants
• Compressors
• Blowers and fans
• Cement industry
• Chemical industry
• Glass industry
• Wood-processing industry
• Pulp and paper industry
• Oil and Gas
• Railed vehicles
• Refineries
• Shipbuilding
• Steel mills
• Sugar industry
Related Link: Various pipeline industry project case of molded rubber expansion joint from shanghai songjiang group
