DN32 threaded Flange Double Sphere Non Metal Expansion Joint Application For No negative pressure variable frequency water supply
Shanghai Songjiang Group Introduction to everyone: DN32 threaded Flange Double Sphere Non Metal Expansion Joint Application For No negative pressure variable frequency water supply， The connection method of the Threaded Flange Double Sphere Non Metal Expansion Joint is the internal thread union at both ends. Threaded Flange Double Sphere Non Metal Expansion Joint can greatly reduce vibration and noise, effectively ensuring a quiet working environment.

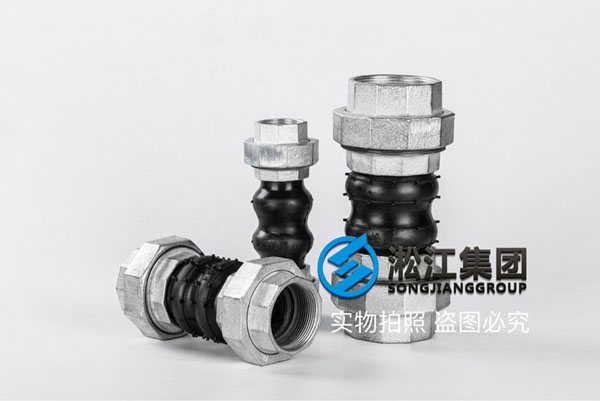

Name: DN32 threaded Flange Double Sphere Non Metal Expansion Joint

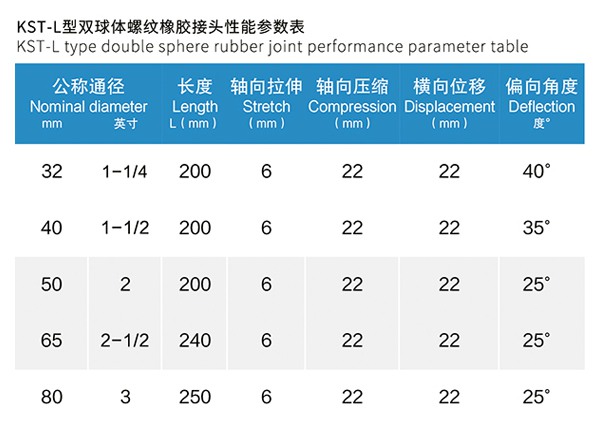

Model: DN32
Pressure: 6PN/10PN/16PN
Length: 200MM
Axial compression: 22mm
Axial tension: 6mm
Lateral displacement: 22mm
Deviation angle: 40degrees.

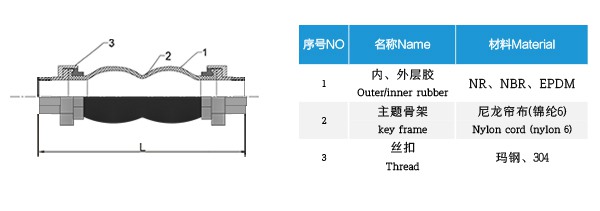

Rubber material: NR/NBR/EPDM/Neoprene/Viton
Flange material: QT450/ carbon steel/stainless steel 304/316
Flange standard: GB/T 9119-2000/Ansi B16.5 150#/DIN1092-1/JIS5K
Warranty period: 1 year/3years/5 years
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Single sphere Non-Metal Expansion Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.
