DN65 Stainless steel 304/316 flange Single Sphere Non Metal Expansion Joint Application For Frequency control and constant pressure water supply equipment

DN65 Stainless steel 304/316 flange Single Sphere Non Metal Expansion Joint Application For Frequency control and constant pressure water supply equipment

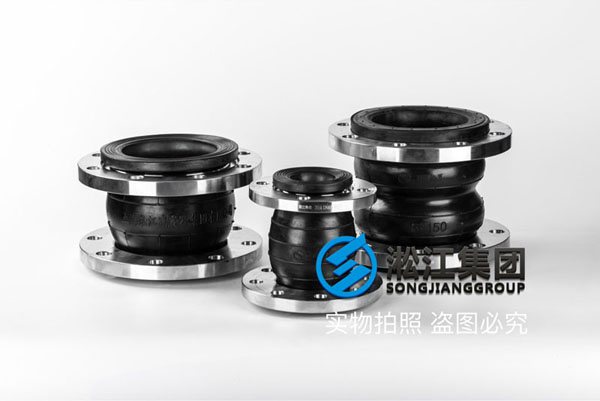

Shanghai Songjiang Group Introduction to everyone: DN65 Stainless steel 304/316 flange Single Sphere Non Metal Expansion Joint Application For Frequency control and constant pressure water supply equipment, DN65 Stainless steel flange Non Metal Expansion Joint that absorbs mainly longitudinal movements axially along a straight section of pipe.With A long service life – high operational reliability

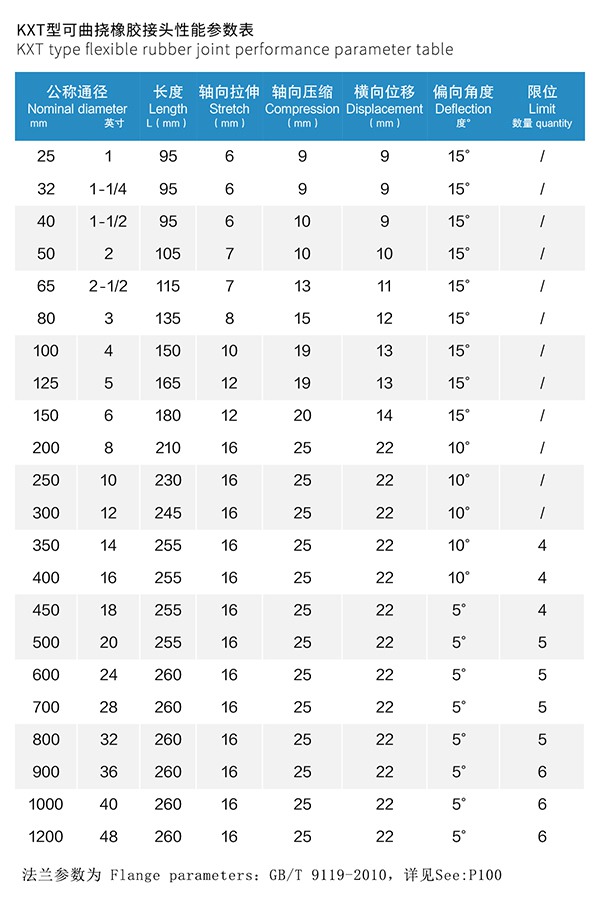

Name: DN65 Stainless steel flange Non Metal Expansion Joint
Model: KXT-NBR-DN65
Pressure: 0.6Mpa/1.0Mpa/1.6Mpa/2.5Mpa
Length: 115MM
Axial compression: 13mm
Axial tension: 7mm
Lateral displacement: 11mm
Deviation angle: 15 degrees.
Rubber material: NR/NBR/EPDM/Neoprene/Viton
Flange material: stainless steel 304/316
Flange standard: GB/T 9119-2000/Ansi B16.5 150#/DIN1092-1/JIS5K
Warranty period: 1 year/3years/5 years
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Single sphere Non Metal Expansion Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.

stainless steel 304 flange Single sphere Non Metal Expansion Joint introduction:
1, as shown in the title: stainless steel 304 flange, the flange is widely used in health, chemical, and other pipelines.
2. The rubber pipe body is used with normal products of 16kg pressure, and ordinary water and the temperature is below 80 degrees.
3, mainly play the role of vibration and noise reduction, effectively protecting the long-term service life of the pump equipment.
4, 304 stainless steel flange + Single sphere Non Metal Expansion Joint = 304 stainless steel flange Single sphere Non Metal Expansion Joint

stainless steel 304 flange Single sphere Non Metal Expansion Joint performance:
1, stainless steel flange Single sphere Non Metal Expansion Joint is mainly made of stainless steel flange with rubber ball combination.
2, small size, lightweight, good elasticity, easy installation, and maintenance.
3, installation can produce transverse, axial, angular displacement, not by the pipe core, flange uneven limit.
4, can reduce the structure transmission noise, and strong vibration absorption capacity.
5. The internal seamless high-pressure Single sphere Non Metal Expansion Joint independently developed by our company can more effectively prevent the erosion of corrosive media on the inner wall of the Single sphere Non Metal Expansion Joint and improve the service life in the pipeline with high-temperature resistance, acid and alkali resistance, and oil resistance.
