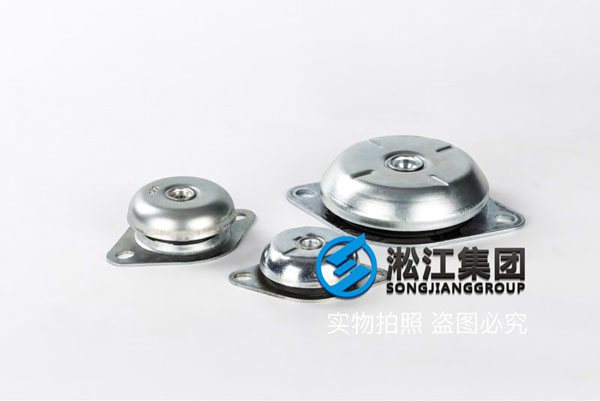

JA type JA633008W Circulating pump Rubber Damping Mounts
Shanghai Songjiang Group Introduce to everyone: JA type JA633008W Circulating pump Rubber Damping Mounts. Songjiang Group recommends high-quality Rubber Damping Mounts products for the Circulating pumps. The effect is very good, the application range is about 25Hz (1.500 rpm).
JA type Rubber Damping Mounts can achieve a high vibration damping effect in axial pressure and lateral pressure, especially used in generators, engines, and systems, the vibration damping effect is very good, the application range is about 25Hz (1.500 rpm). The internal rubber and iron parts are completely glued to provide the best vibration damping effect, and a safety lock part is attached to ensure safety.
JA type JA633008W Circulating pump Rubber Damping Mounts description:
1. The internal rubber and iron parts are completely glued, and a safety lock part is attached to ensure safety.
2. The shock absorber can achieve a high degree of shock absorption under axial pressure and nd lateral pressure.
3. Applicable to all kinds of generators, pumps, fans, air-conditioning units, etc.

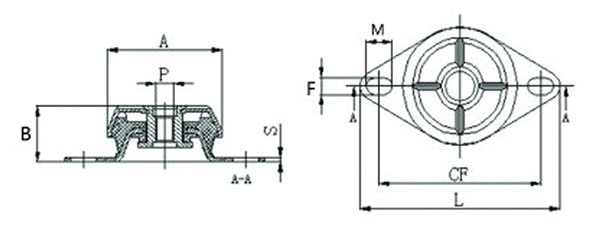

JA type JA633008W Circulating pump Rubber Damping Mounts are composed of upper and lower shells and rubber vibration damping layers and are suitable for vibration and shock isolation of various marine, land, and aviation machinery and equipment above 1500 rpm. Its natural frequency under rated load is 10Hz. The structure is simple, the installation and update are convenient, and the use is safe and reliable. There are various installation methods, suitable for horizontal, side, and side-mounted installations. The lateral stiffness is higher than the longitudinal stiffness, and the lateral stability is better when lying flat.
