KST-F DN80 NBR Double Sphere Non Metal Expansion Joint Application For hydraulic Pipeline system

KST-F DN80 NBR Double Sphere Non Metal Expansion Joint Application For hydraulic Pipeline system

Shanghai Songjiang Group Introduction to everyone: KST-F DN80 NBR Double Sphere Non Metal Expansion Joint Application For plc frequency conversion constant pressure water supply
Shanghai Songjiang Group recommends NBR Double Sphere Non Metal Expansion Joint for many hydraulic Pipeline system users

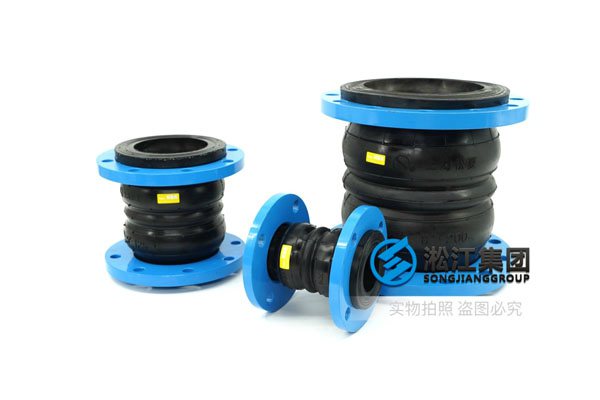

Name: KST-F DN80 NBR Double Sphere Non Metal Expansion Joint
Model: KST-F DN80
Pressure: 6PN/10PN/16PN
Length: 170MM
Axial compression: 50mm
Axial tension: 30mm
Lateral displacement: 45mm
Deviation angle: 40degrees.
Rubber material: NBR
Flange material: QT450/ carbon steel/stainless steel 304/316
Flange standard: GB/T 9119-2000/Ansi B16.5 150#/DIN1092-1/JIS5K
Warranty period: 1yeas/3years
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Single sphere Non Metal Expansion Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.

Medium use of KST-F DN80 NBR Double Sphere Non Metal Expansion Joint
NBR:<115° hydraulic oil, emulsion, lubricating oil, thin oil, use for oil exploitation;
Nbr-special: <115° gasoline, diesel oil, aviation kerosene;
