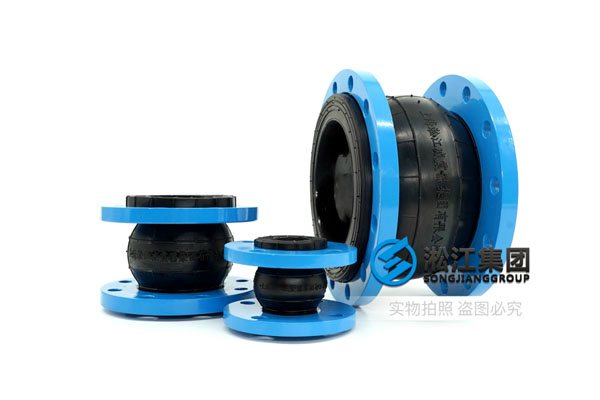

KXT DN25 Single sphere Non Metal Expansion Joint application for pressure water supply equipment

KXT DN25 Single sphere Non Metal Expansion Joint application for pressure water supply equipment

Shanghai Songjiang Group Introduction to everyone: KXT DN25 Single sphere Non Metal Expansion Joint application for pressure water supply equipment， DN25 Single sphere Non Metal Expansion Joint offers flexibility allowing concurrent movements, isolation of vibration, reduction of noise, resistance to abrasion and chemical erosion within fluid systems.

Vibration Reduction KXT DN25 Single sphere Non Metal Expansion Joint introduction:
KXT DN25 Single sphere Non Metal Expansion Joint has good comprehensive performance, it is widely used in the chemical industry, construction, water supply, drainage, petroleum, light, and heavy industry, refrigeration, sanitation, water heating, fire, power, and other basic engineering. KXT type Non Metal Expansion Joint special cold water, hot water, compressed air, natural gas, etc. The design, novel structure, and good sealing performance to solve the problem of thermal expansion and contraction caused by the pipeline burst and damage to the pipeline connection equipment, effectively improve the service cycle of the pipeline and the protection of equipment.

Medium of Vibration Reduction KXT DN25 Single sphere Non Metal Expansion Joint information:
Natural rubber: < 80°, ordinary water, domestic sewage, air conditioning circulating water, river water, cooling water, fire water, drinking water, pulp;
Noted usually overseas clients will require Neoprene Non Metal Expansion Joint to the pass-through same medium, Because Neoprene is an overseas common use material, and Chinese manufacturer need an import to get Neoprene raw material. so it is expensive about 30% more than a natural rubber-made rubber expansion joint. About 60-70% of Chinese manufacturers will sell natural Non Metal Expansion Joint as Neoprene Non Metal Expansion Joint when they know the pass-through medium is water so their price is not high then the market price. We are honest with all clients, you get the same product we promised. So best you get to know is if your client will accept the use of natural rubber if the drawing shows the material is Neoprene.
EPDM: <120°, boiling water, weak acid, strong alkali, seawater, food, beverage, natural gas, power plant lime slurry, power plant desulfurization, limestone, solar hot water, ground source heat pump, lithium electric acid and alkali pipeline, automobile spraying, automobile electrophoresis, wastewater sewage, garbage leachate.
NBR:<115° hydraulic oil, emulsion, lubricating oil, thin oil, use for oil exploitation;
Nbr-special: <115° gasoline, diesel oil, aviation kerosene;
Lining PTFE: temperature <80°, strong acid, and alkali, aviation kerosene, petroleum, diesel, gasoline, (non-negative pressure vacuum)
Lining metal or vacuum support ring: if the pipeline has strong vacuum pressure, Lining metal or vacuum support ring Material carbon steel, stainless steel 304/316, according to the medium pass. common medium use carbon steel.
Manufacturer: Shanghai Songjiang shock absorber Group Co., LTD
