Long application life Kqjz-100-a dry type chiller air Damping Mounts
Shanghai Songjiang Group Introduce to everyone: long application life Kqjz-100-a dry type chiller air Damping Mounts, Shanghai Songjiang Group for dry transformer recommended A damping effect of the best Damping Mounts products: air Damping Mounts, We have provided Chiller Air Damping Mounts for many projects.

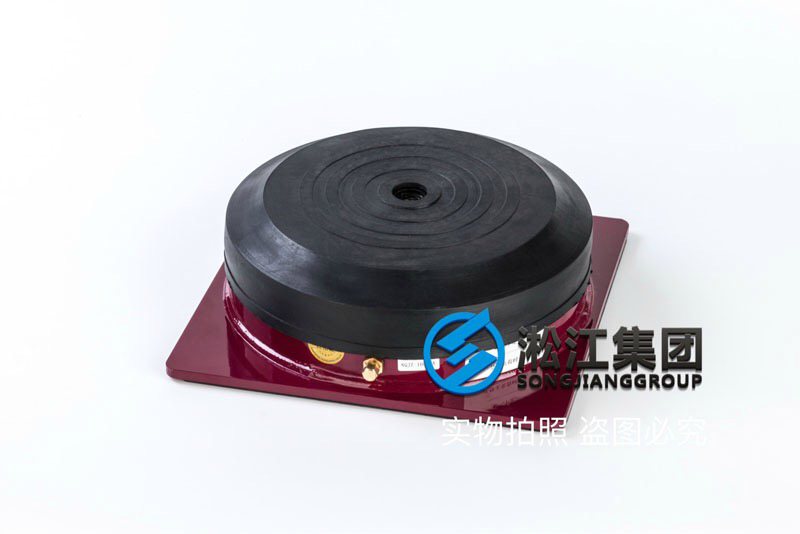

Kqjz-100-a dry-type transformer air Damping Mounts
Dry-type transformer air Damping Mounts introduction:
Pneumatic anti-vibration device, in line with JISD-4101 air cushion pressure test standard
Natural frequency 3Hz~5Hz, maximum operating pressure 4.5kg /cm^2.
The body adopts multi-layer rust-resistant paint.
The body adopts Neoprene Rubber, with strong air tightness.
The anti-vibration effect is the highest, and the shock absorption effect of general equipment is more than 97%.
Load range of 50~100Kg.
An oil cap can be added to prevent general oil corrosion.
Application: chiller, punch, pump set, transformer.
KQJZ type dry transformer air Damping Mounts how to use see: KQJZ type air Damping Mounts installation instructions

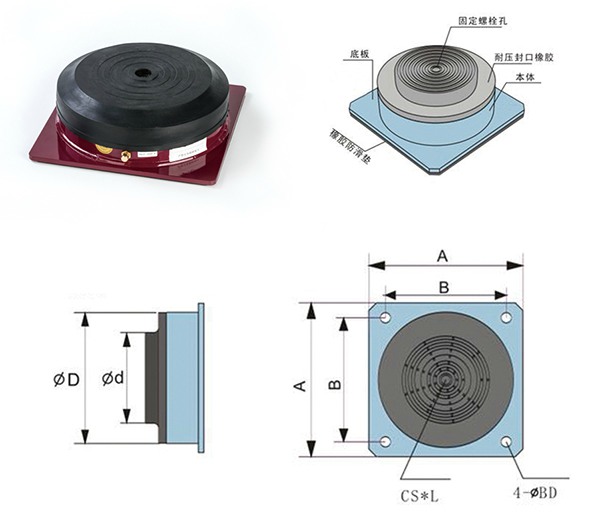

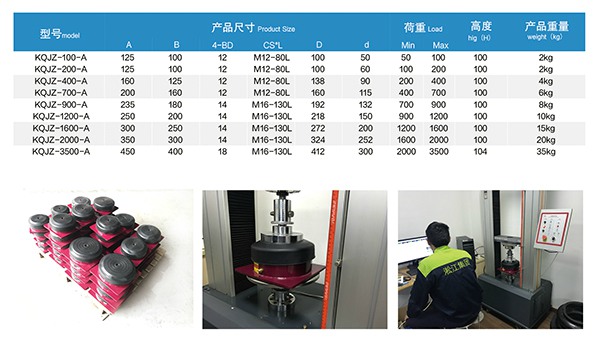

KQJZ Air Damping Mounts Shape Size and Other Types of Table Details Battle of Jiang group production of air Damping Mount vibration and noise of a dry-type power transformer can be absorption effect is good, is currently the best global shock absorption effect of Damping Mounts products, all the air battle of Jiang group production rubber Damping Mounts products are all made of natural rubber, rubber content as high as 50%, with good sealing and long service life, simple maintenance, is the first choice of many high-end environments, For example: star hotels, high-end office buildings, floor equipment and other high requirements for shock absorption effect of the environment.
