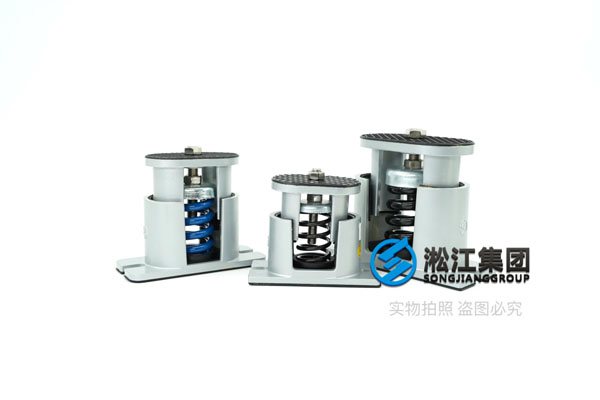

SHA-S-100 Sitting fan damping Spring Damping Mounts
Shanghai Songjiang Group Introduce to everyone: SHA-S-100 Sitting fan damping Spring Damping Mounts， Shanghai Songjiang Group Fan Spring Damping Mounts the low-frequency damping design allows the Fan to greatly reduce vibration
SHA-S-100 Sitting Fan Damping Spring Damping Mounts Features:
1. The body material is aluminum alloy.
2. Special structure design, the height can be adjusted according to actual needs.
3. The appearance is light and sturdy, and the installation is easy; it is suitable for all kinds of mechanical internal vibration isolation devices.
4. The springs are all heat treated, ED rusted, painted, or sprayed.
5. The load-deflection of 25mm can effectively eliminate mechanical vibration.
6. The Songjiang Group LOGO is designed on the body of the new SHA fan shock absorber as an anti-counterfeiting logo.
SHA-S-100 Sitting fan damping Spring Damping Mounts has the characteristics of easy installation. The upper and lower ends of the shock absorber have screws and screw holes, and the upper end of the spring has a height adjustment nut. The height of the shock absorber can be adjusted freely according to the installation needs. There is lateral rubber damping, which increases the vertical damping coefficient, improves the longitudinal and lateral stiffness, and ensures that the equipment can run more safely.

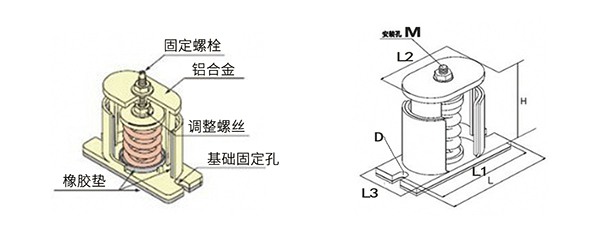

SHA type sitting fan damping Spring Damping Mounts structure diagram
