SHM type SHM-9-13500 Stainless steel water supply equipment adjustable Spring Damping Mounts
Shanghai Songjiang Group Introduce to everyone: SHM type SHM-9-13500 Stainless steel water supply equipment adjustable Spring Damping Mounts. SHM type Spring Damping Mounts Vibration Reduction dampens these disturbances and provides resistance against shock stress from water supply equipment

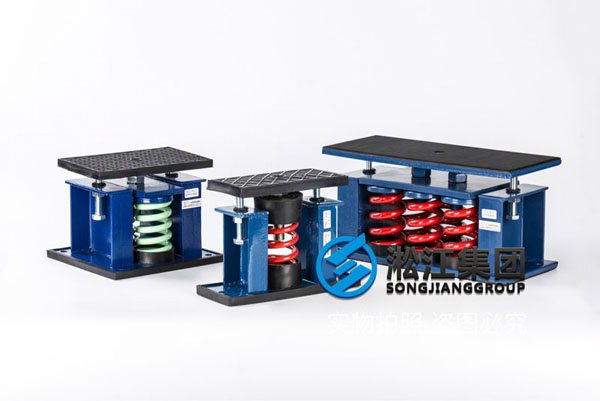

1. SHM type cooling tower adjustable Spring Damping Mounts physical photo:
2. Introduction of SHM type cooling tower adjustable Spring Damping Mounts:
1. The spring is designed with a low-frequency value and is sprayed with plastic, which has good weather resistance and a good anti-vibration effect.
2. The top and bottom are made of anti-skid and wear-resistant rubber and fixing bolts, which greatly improves the safety performance.
3. The installation is simple and the level and height can be adjusted according to actual needs.
4. Can effectively isolate chillers, cooling towers, heat pump units, power generation vibration on of large power equipment such as units, etc., and protect and prolong its useful

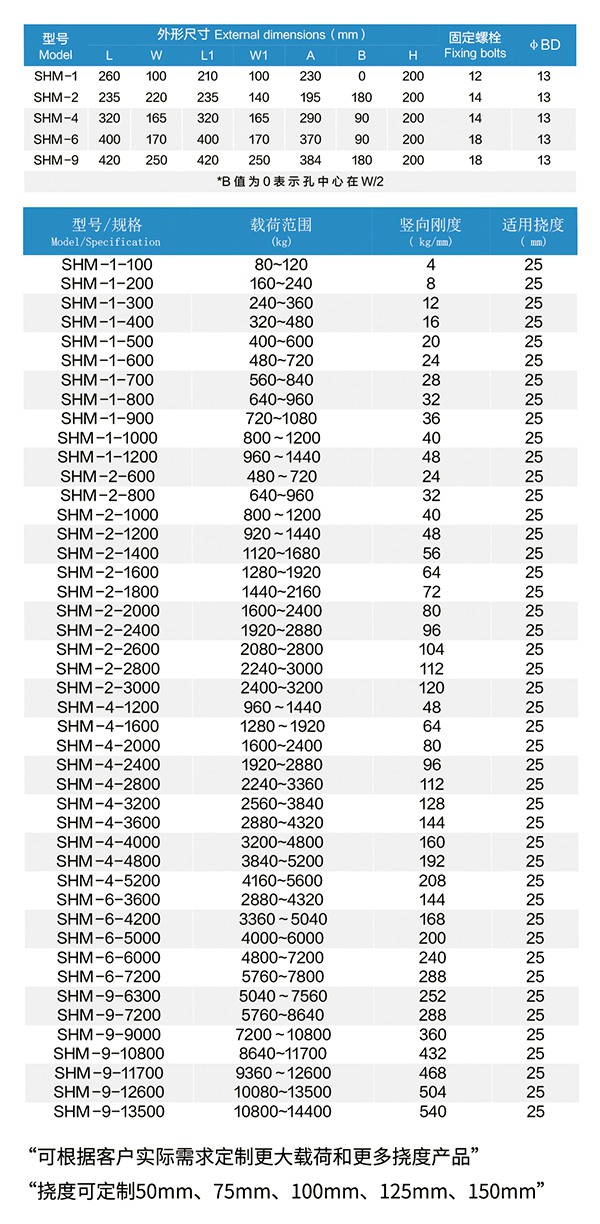

life. Note: -1 is a set of spring combinations, -2 is a combination of two sets of springs,
-4 is a combination of four springs, -6 is a combination of six springs, and -9 is a combination of nine springs
spring combination.
